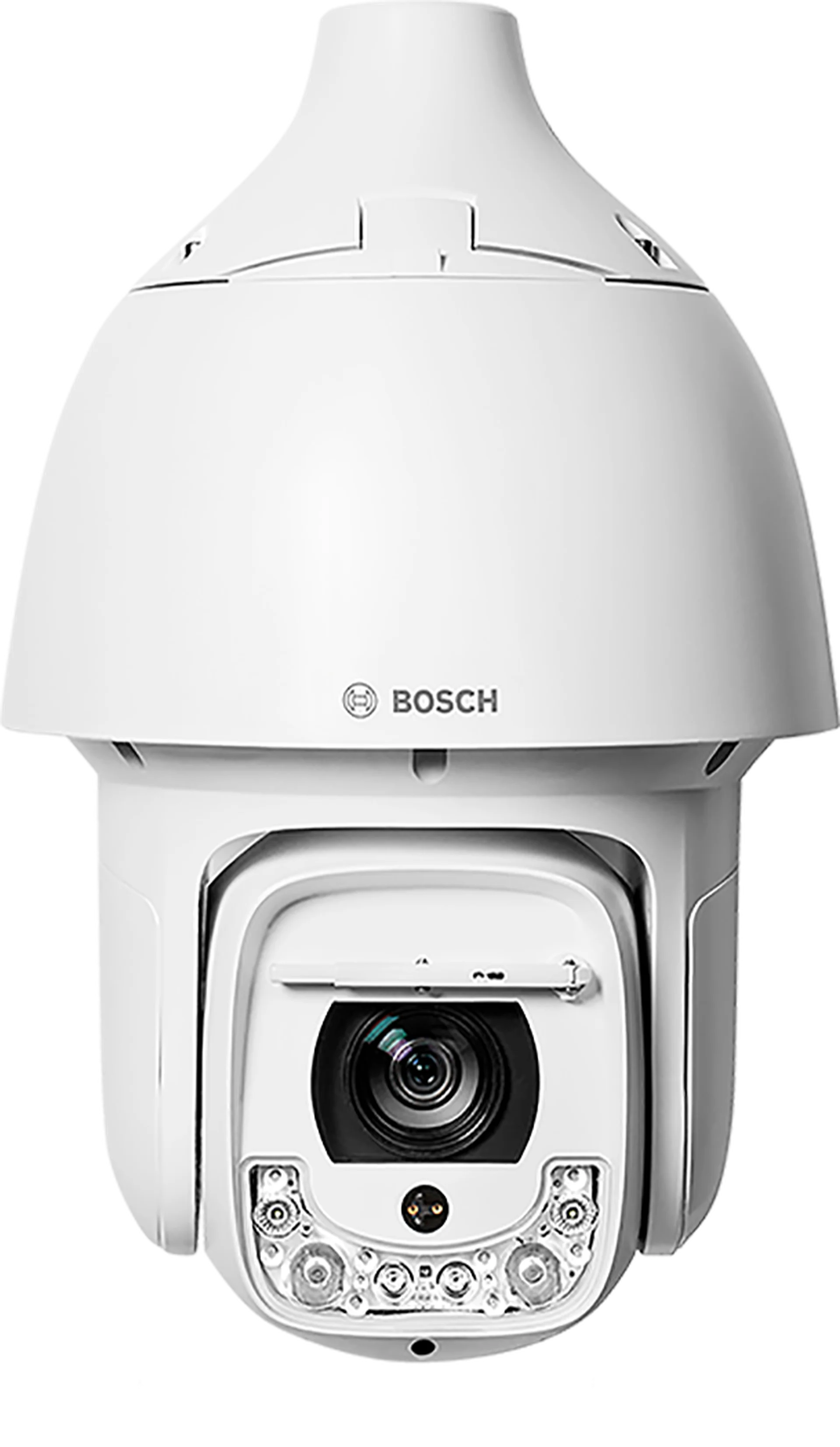

PTZ 4MP HDR 30x IP66 pendant IR
The AUTODOME IP starlight 5000i family of PTZ cameras combine reliable visual performance with accurate tracking across large environments. With exceptional low-light capabilities and built-in analytics, these cameras are specifically designed for tracking applications under widely varying light conditions.
Commercial Type No: NDP-5533-Z30L
30X, 4MP high detail at fast speeds (60 fps)
Starlight technology with 1/1.8 inch HD sensor for excellent low-light performance
HDR X technology with up to 133dB dynamic range and fewer motion-related artifacts
Combination of 320 m (1050 ft) IR (850 nm) + White light LEDs
Rain-sensing wiper for improved images in rain and in dirty urban conditions
Product Overview
Act faster with built-in analytics
Essential Video Analytics automatically detects critical events like loitering or line crossing to trigger real-time alerts.
Maintain visibility in extreme low light
Starlight technology and advanced noise suppression deliver exceptional color detail even in near-darkness.
Track distant subjects with precision
An integrated 30X optical zoom allows operators to identify people and objects clearly at extended distances.
Reduce network bandwidth and storage costs
Intelligent streaming and efficient compression lower bit rates significantly without sacrificing critical video quality.
Secure critical data from malicious attacks
An on-board Trusted Platform Module and encrypted communications ensure video data remains protected from end to end.
Key Specifications
| Sensor type | 1/1.8 inch CMOS |
|---|---|
| Resolution | 4MP |
| Low light technology | starlight |
| WDR technology | HDR X |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 6.6 – 198 mm |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.1° – 58.5° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| IR illumination range | 320 m |
| Analytics (built-in) | Essential Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 4MP HDR 30x IP66 pendant IR
The camera utilizes HDR X technology to capture high-quality video of moving objects across scenes with a large dynamic range (up to 133 dB). Unlike traditional HDR technologies that blend multiple exposures and create unwanted imaging artifacts, HDR X takes two different readouts from a single exposure. This motion-optimized approach resolves blur issues, providing crisp details and improved dynamic range even when the camera is moving or light levels are changing.
Designed for superior low-light performance, the camera features starlight technology with a 1/1.8-inch HD sensor and dual-mode illumination. It integrates long-life infrared (IR) and white light LEDs, enabling clear detection of objects in total darkness up to 320 meters (1,050 feet) away. The intelligent IR mode automatically steers the beam dynamically to match the zoom ratio and field of view, while the white light illuminator captures full-color scene details and can serve as a strong visual deterrent.
The AUTODOME IP starlight 5000i | 5100i IR includes Essential Video Analytics on the edge, enabling reliable, rules-based alarming for commercial buildings, retail stores, and perimeters. It automatically detects, tracks, and classifies objects as upright persons, cars, bikes, or trucks. Advanced tasks like multiple line crossing, loitering, and idle object detection allow operators to filter out noise, focus on relevant activity, and move swiftly from simple detection to true understanding.
Yes, the camera is housed in an IP66-rated pendant enclosure capable of operating in extreme temperatures down to -40 degrees Celsius (-40 degrees Fahrenheit). To ensure outstanding image quality in rain or dirty urban conditions, it features an integrated, rain-sensing wiper that automatically clears water and debris from the camera window. This ensures continuous, clear visibility regardless of challenging environmental factors.
Security is built into the device from the ground up. The camera requires a service-level password on initial setup and restricts access over secure channels using the state-of-the-art TLS 1.2 protocol and AES 256-bit encryption. It features an Embedded Login Firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support to protect against malicious attacks. Additionally, system administrators can enable software sealing to trigger automated alarms if any unauthorized configuration changes occur.
