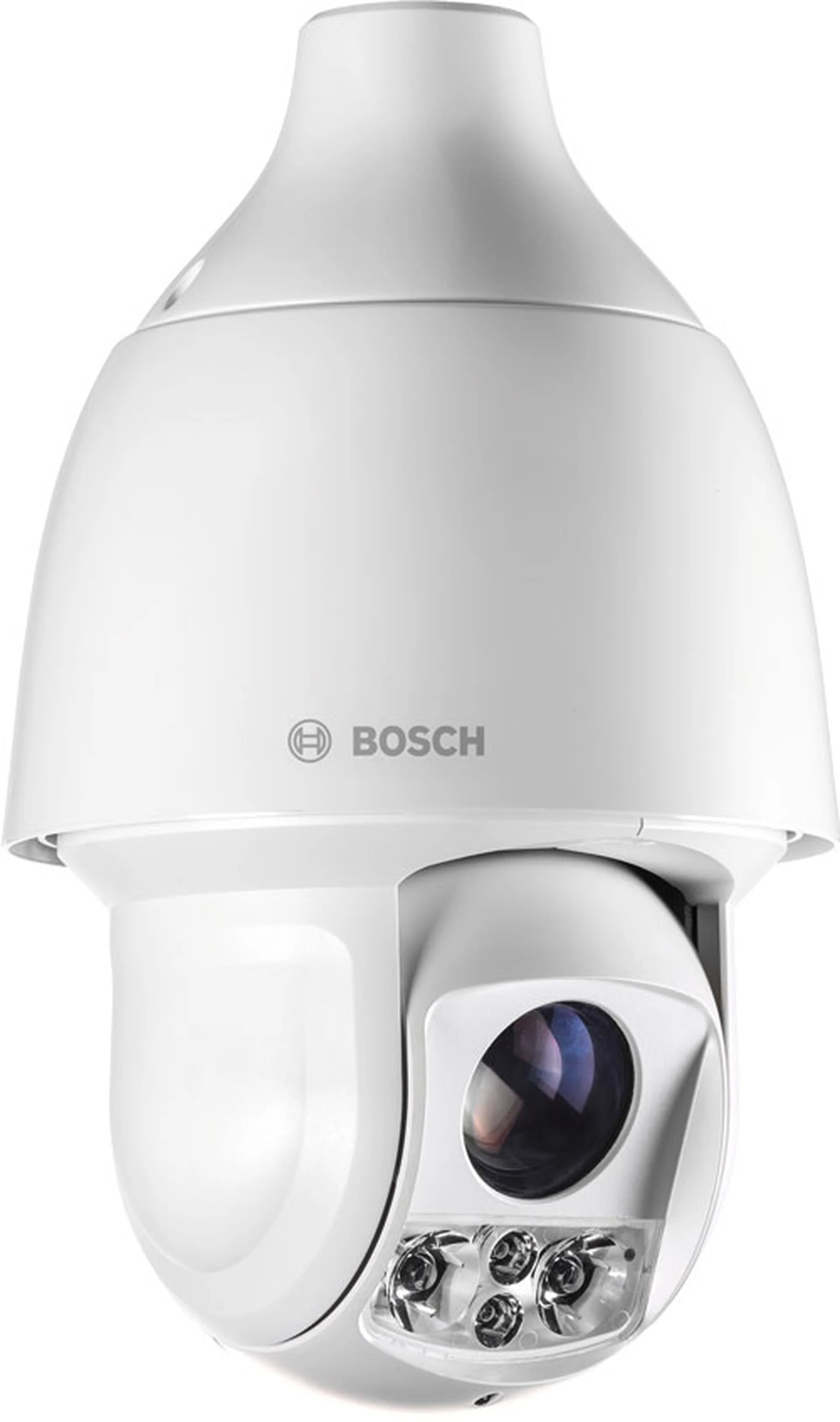

PTZ 2MP 30x IP66 pendant IR
The AUTODOME IP starlight 5000i family of PTZ cameras combine reliable visual performance with accurate tracking across large environments. With exceptional low-light capabilities and built-in analytics, these cameras are specifically designed for tracking applications under widely varying light conditions.
Commercial Type No: NDP-5522-Z30L
Starlight camera technology with excellent low-light performance
High-performance HD outdoor PTZ dome camera with integrated IR illumination for scenes with low or no ambient lighting
Variable illumination ensures that IR light is uniformly distributed in the field to minimize dark spots or over-illuminated scenes
Long distance illumination up to 180 m (590 ft)
Product Overview
Act faster with built-in analytics
Essential Video Analytics automatically detects critical events like loitering or line crossing to trigger real-time alerts.
Maintain visibility in extreme low light
Starlight technology and advanced noise suppression deliver exceptional color detail even in near-darkness.
Track distant subjects with precision
An integrated 30X optical zoom allows operators to identify people and objects clearly at extended distances.
Reduce network bandwidth and storage costs
Intelligent streaming and efficient compression lower bit rates significantly without sacrificing critical video quality.
Secure critical data from malicious attacks
An on-board Trusted Platform Module and encrypted communications ensure video data remains protected from end to end.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
|---|---|
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 4.5 – 135 mm |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.4° – 60.9° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| IR illumination range | 180 m |
| Analytics (built-in) | Essential Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP 30x IP66 pendant IR
The system combines starlight technology with an integrated, variable IR illuminator to deliver detailed images in low-light or no-light conditions. The intelligent IR automatically adjusts intensity based on the zoom factor and field of view, ensuring uniform illumination up to 180 meters (590 feet) while minimizing dark spots and over-illuminated areas.
The camera features built-in Essential Video Analytics designed to trigger relevant alerts and help operators retrieve data quickly. This enables advanced tasks like line crossing, loitering detection, and people counting, allowing security teams to move from simple detection to real-time understanding without requiring complex calibration.
Utilizing intelligent streaming capabilities alongside H.265 video encoding and Intelligent Dynamic Noise Reduction, the camera can reduce bit rates by up to 80 percent. This ensures high-quality video is delivered efficiently, encoding only relevant information like moving objects to lower overall network load and storage costs.
Yes, the camera is designed for quick and straightforward installation. The mounting concept allows a single person to connect field cables directly to the camera without re-routing, securing the device to the mount with a single screw. It comes fully assembled with a sunshield and is IP66 and IK10 rated to withstand harsh weather and impacts.
Special measures are built in to ensure the highest level of security for device access and data transport. The system supports HTTPS, TLS 1.2, and 802.1x network authentication. Superior protection from malicious attacks is provided by an embedded login firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support.
