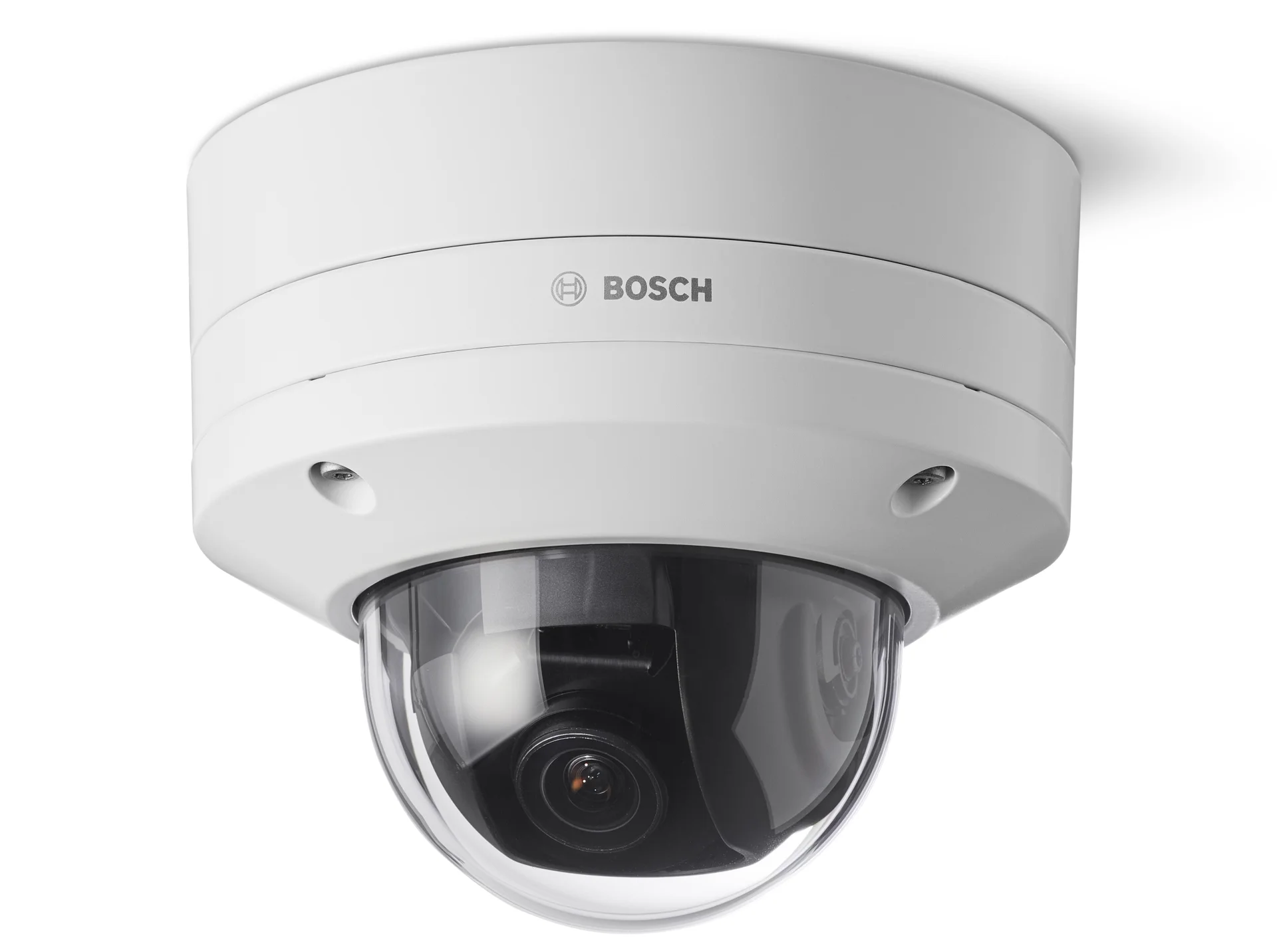

FLEXIDOME 8100i

The FLEXIDOME 8100i family delivers high-performance intelligent surveillance with advanced IVA PRO AI analytics, Starlight technology, HDR imaging, and up to 4K UHD resolution. Motorized PTRZ, remote commissioning, and AI-powered calibration simplify deployment while ensuring reliable detection and superior video performance in challenging environments.

Starlight technology for low-light performance with maximum detail
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring, critical infrastructure and perimeter security

Product Overview

Gain reliable insights in crowded environments

Built-in IVA Pro accurately detects and classifies people and vehicles while filtering out false triggers from weather or moving trees.

Capture crucial details in near darkness

Advanced starlight technology and High Dynamic Range reveal clear, color-accurate forensic evidence in shadows and high-contrast lighting.

Reduce installation time with remote setup

Motorized pan, tilt, roll, and zoom enables fast and precise adjustment on the field of view from remote locations simplifying installation and reducing on-site effort.

Ensure continuous operation in harsh conditions

A rugged housing exceeding IP66/IP67, IK11 and NEMA 4X standards protects the system against severe impacts, heavy rain, dust, and extreme temperature fluctuations.

Maintain steady video on vibrating structures

Electronic image stabilization uses a built-in gyro sensor to correct shaking, delivering smooth and usable footage from bridges or tall poles.

Key Specifications

Key specifications
Sensor type	1/1.8 inch CMOS
Resolution	6MP ; 8MP
Low light technology	starlight
WDR technology	HDR
Frame rate (fps)	1 – 30 fps
Lens focal length (mm)	3.9 – 10 mm ; 12 – 38 mm
Horizontal field of view (°)	117° – 44° ; 36° – 12°
Field of view adjustment	Motorized pan, tilt, roll and zoom; Autofocus
Video compression	H.264 / AVC; H.265 / HEVC; M-JPEG
IP rating	IP66; IP67; IP6K9K
Impact protection	IK11
Operating temperature	-50 °C – 60 °C (-58 °F – 140 °F)
Analytics (built-in)	IVA Pro Buildings; IVA Pro Perimeter; IVA Pro Privacy; Camera Trainer
Analytics (available)	IVA Pro Traffic; IVA Pro Appearance; IVA Pro Personal Protective Equipment; IVA Pro Visual Gun Detection; IVA Pro License Plate; IVA Pro Vehicle Make Model; IVA Pro Dangerous Good Signs; IVA Pro License Plate + Make Model; Intelligent Audio Analytics

Frequently Asked Questions

Common questions about the FLEXIDOME 8100i

The FLEXIDOME 8100i includes IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy pre-installed. These deep-learning analytics deliver highly reliable detection and tracking of persons and vehicles, maintaining accuracy even in crowded environments or challenging weather conditions while filtering out false triggers.

It combines advanced starlight technology with High Dynamic Range (HDR) to capture maximum detail. This multiple-exposure process ensures critical features, such as faces or vehicles, remain clearly visible in both brightly lit areas and deep shadows within the same scene.

Using a mobile device or PC, installers can remotely pan, tilt, roll, and zoom (PTRZ) to set the exact field of view with a single click. This eliminates the need to physically touch the camera or climb ladders multiple times, significantly reducing deployment time and operational friction.

Yes, it features an extremely robust design rated to IP66/IP67 and exceeding IK11 standards, providing exceptional resistance to corrosion, rain, dust, and vandalism. It operates reliably in extreme temperatures ranging from -50°C to +60°C (-58°F to 140°F), making it ideal for critical infrastructure and traffic monitoring.

Special measures ensure the highest level of data security, including an onboard Trusted Platform Module (TPM), Public Key Infrastructure (PKI) support, and an Embedded Login Firewall. It also enforces secure channels for initial setup, supports 802.1x network authentication, and is fully NDAA and TAA compliant.
